Shower system with thermostat hansgrohe Vernis Shape Showerpipe 230 1jet 26284000, chromium

Product characteristics

• consists of: overhead shower, hand shower, bath thermostat, shower bar, shower holder
• Vernis Shape 230 1jet top shower

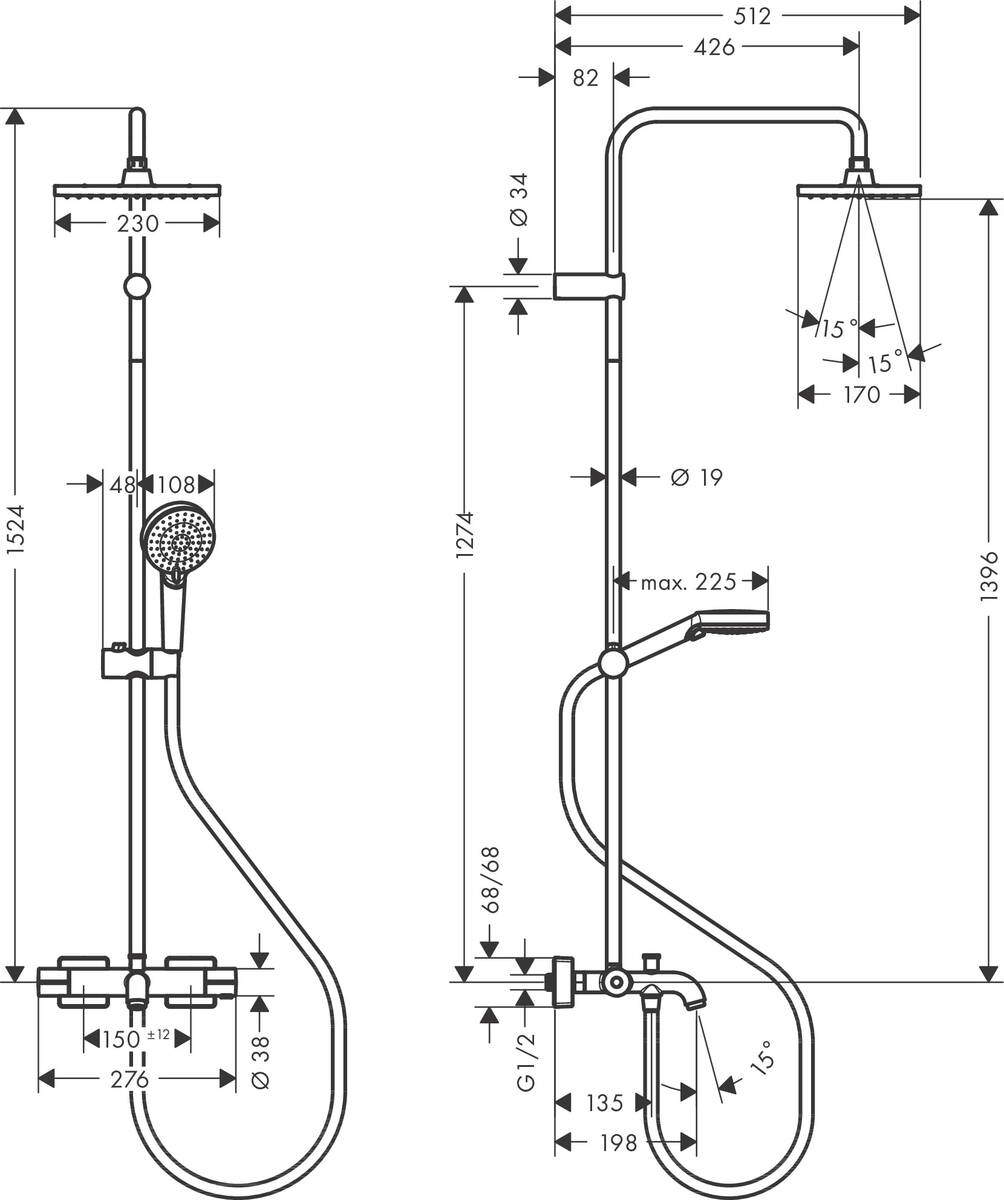

• size of the overhead shower disc: 230x170 mm
• Types of overhead shower jets: Rain
• hinge connection: adjustable angle of overhead shower
• hand shower holder adjustable in height with external select button
• bar diameter: 19 mm
• length of overhead shower holder: 426 mm
• maximum water consumption at 3 bar: 20 l/min
• working pressure: mine. 1 bar/max. 10 bar
• vernis thermostat
• stopper C.
• temperature-limiter
• user control by rotating the handle
• It is not possible to use two consumers simultaneously.
• Suitable for flowing water heaters
• type of installation: external installation
• connector
• centre connection 150 mm ± 12 mm

Consists of

• Top shower 230 1jet (#26281000)
• Vario Manual Shower (#26270000)
• Shower hose 160 cm (#28266000)
