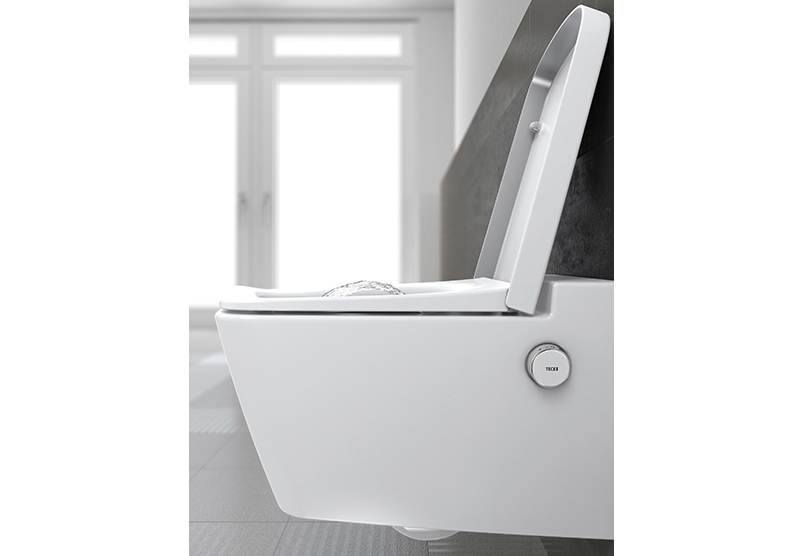

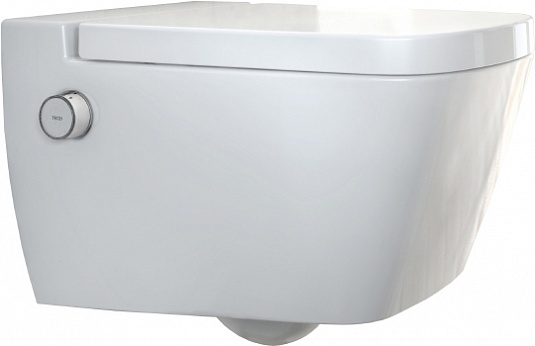

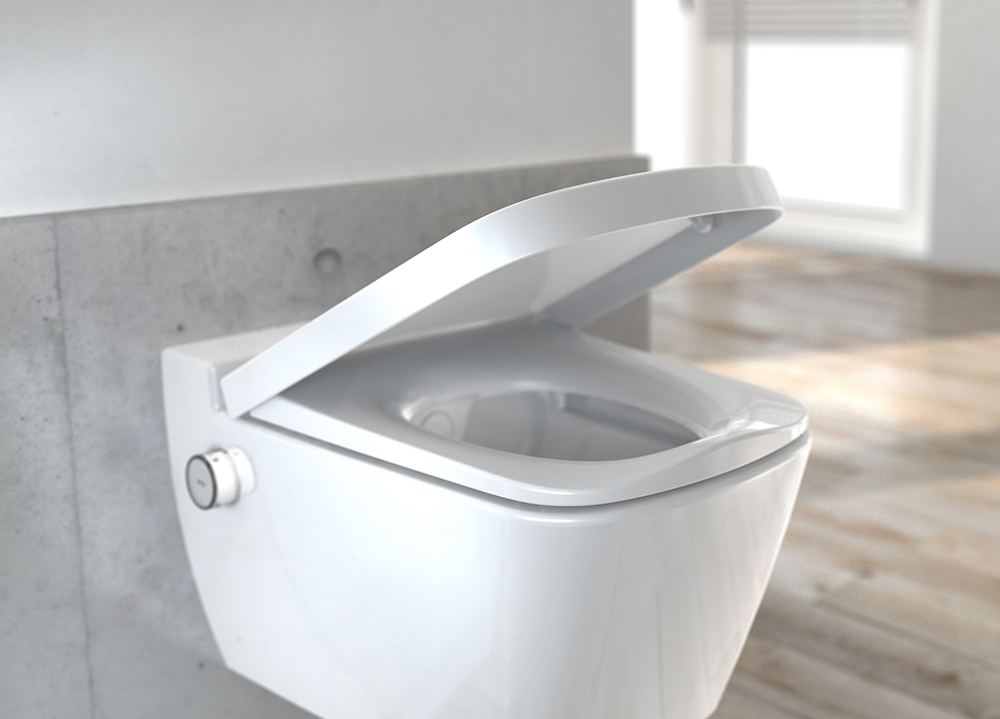

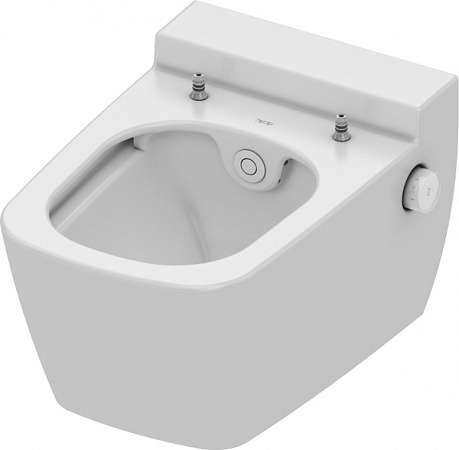

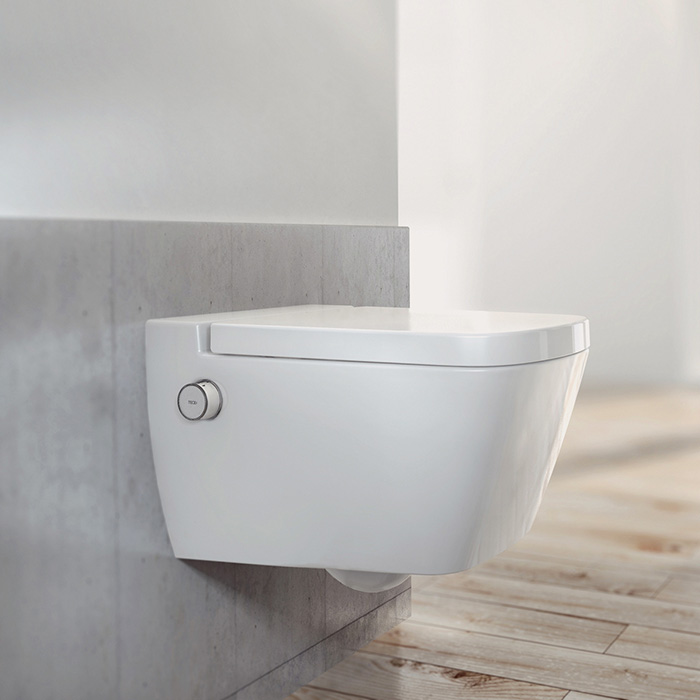

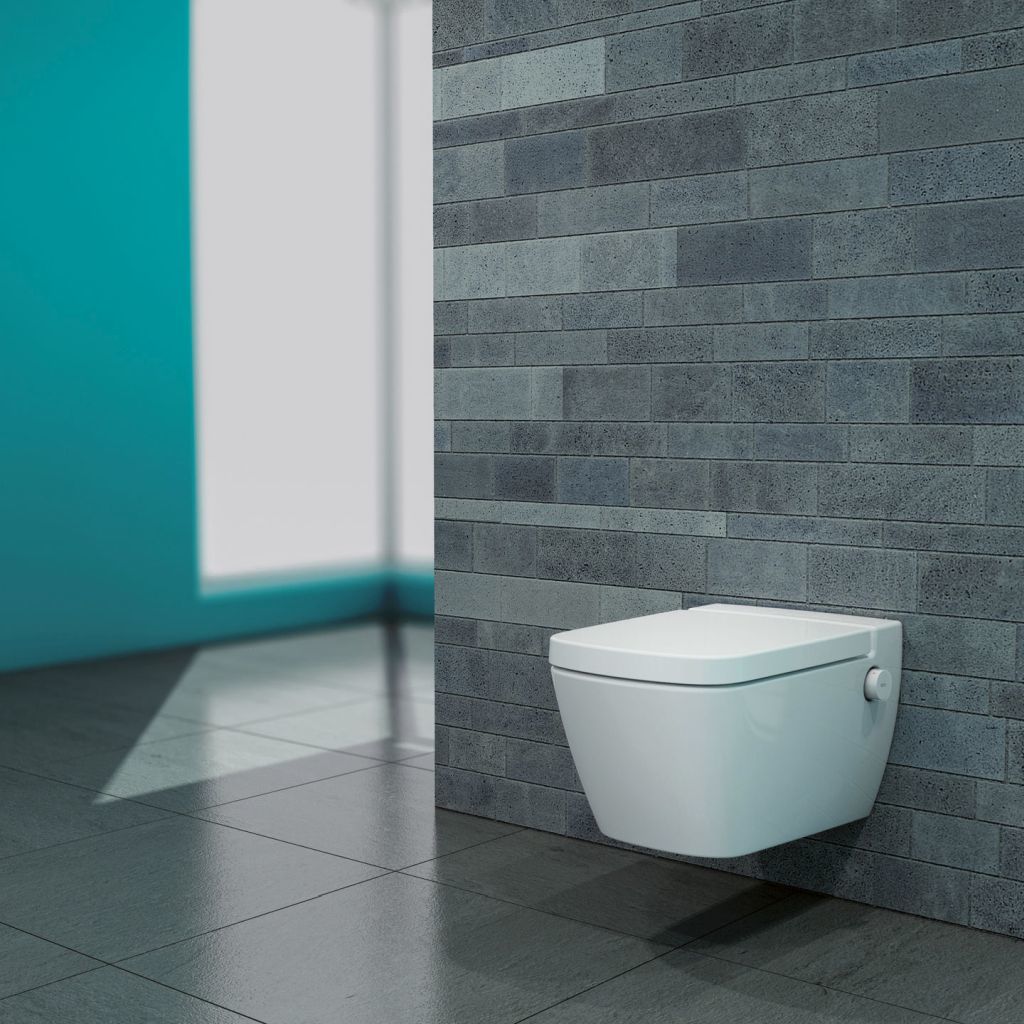

Toilet TECE One 9700200 with hygienic shower function

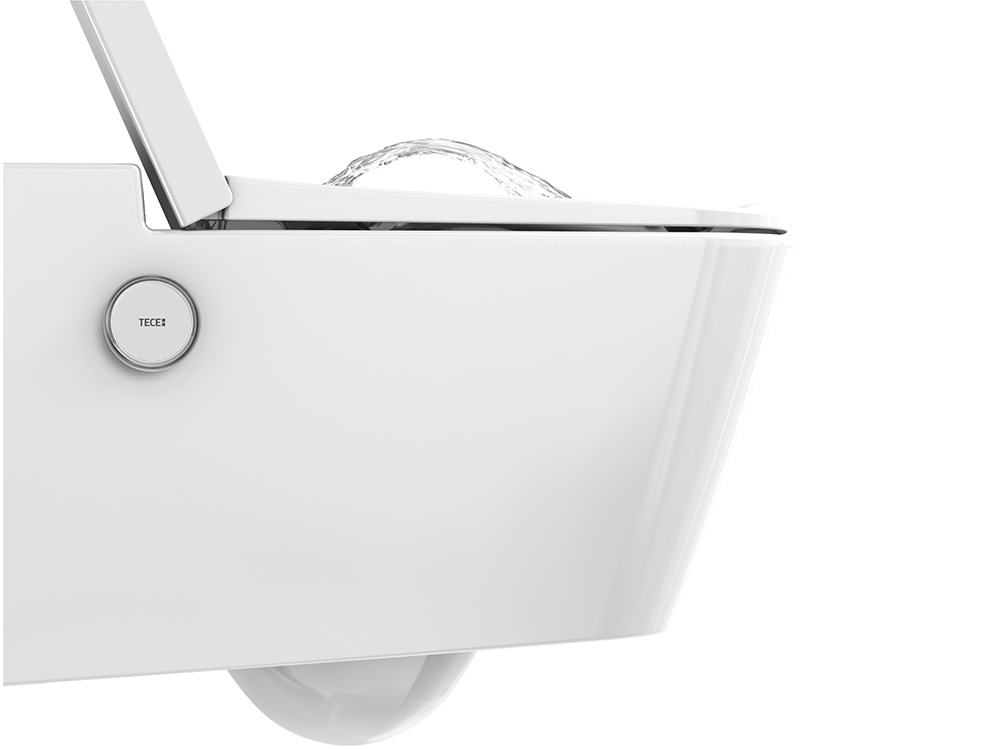

Suspension free toilet with built-in hygiene
shower. Hygienic showers function without use
electricity, it is necessary to connect hot and cold water.
Bidé functions:
• Intuitive setting of temperature and water pressure with
using built-in rotary regulators
• Adjust the volume of water supply to 5.6 l / min
Individual regulation of water temperature (10–38 °C)
• Self-cleaning hygienic shower nozzles
• Replacement nozzles
• Complies with DIN EN 1717
• Minimum working pressure 1 bar (max). 10 bar
Features of the toilet:
• Suspension toilet

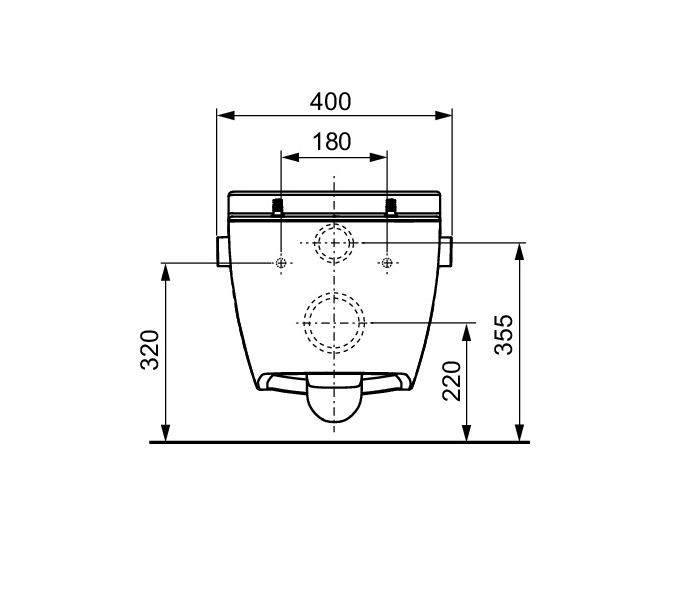

• Compact design - distance from the wall 540 mm, installation
distance between studs 180 mm
• Hidden fasteners and hidden connections to the system
water supply
• Wheel-free toilet bowl with built-in spray protection
• Installed toilet seat mount with lid
• Material: Sanitary ceramics
• Optimal from a hygienic point of view toilet design
with a minimum of angles, edges and connections
• Complies with DIN EN 997

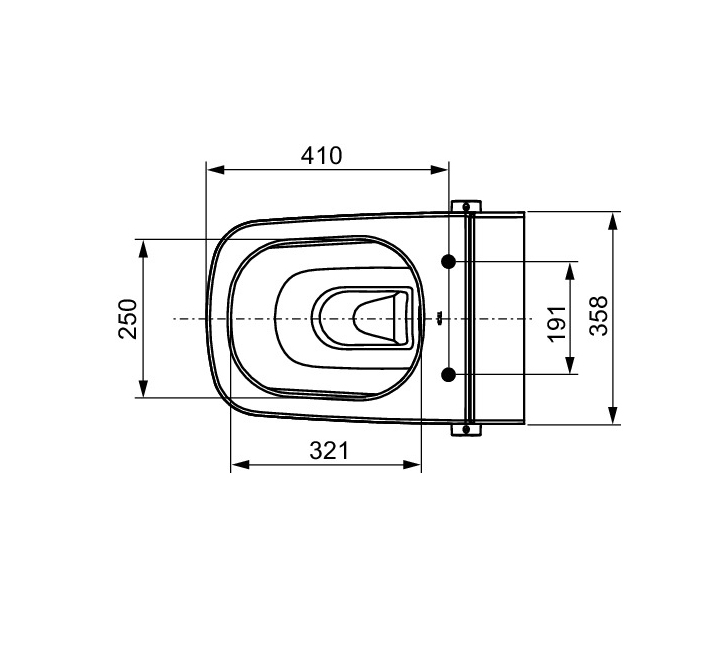

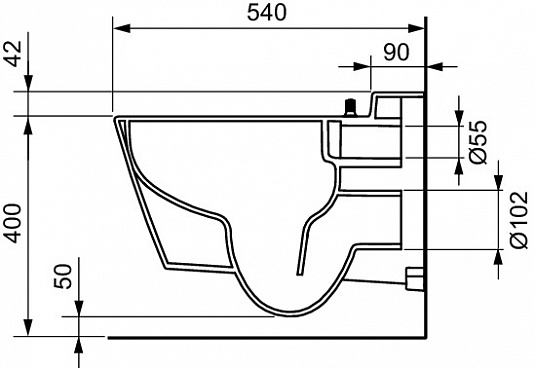

Dimensions (w x in x g): 358x350x540 mm
Delivery kit:
• Toilet, including fasteners of hidden installation
• Pre-installed toilet seat anchorage
• Pre-established control regulators
temperature
• Reinforced hoses for connection to the water supply system
standard corner valve
Additional acquisitions include:
• Toilet seat with TECEone cover (art). 9700600)
Note.
For the bidet function at the installation stage it is necessary to provide
connection to hot and cold water supply systems (see para.
installation kits).
To install with TECElux, you need to select the appropriate lower
glass-panel. 9650109 or 9650110).
