Installation for Grohe Rapid SL 38586001
Art. 38586001
$1,293.00

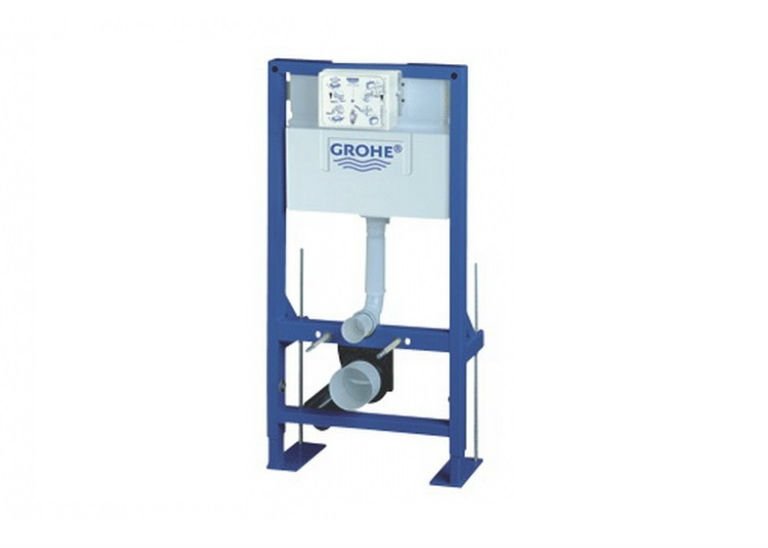

Installation for hanging toilet Rapid SL 38586001 (38586) (height 1m detached)
drain-tank
for free standing installation, installation in front of a wall or wall - partition
mounting height of 1.00 m
powdered steel frame n
prepared for cladding, fixed connections
for single installation, rapid adjustment in height
Fastening material, checked -TUEV
2 bolt holders for toilet
pottery
spacing between bolts 180/230 mm
PP flushing arc DN 80, adjustment of installation depth
adapter DN 80/100, intake and flush headset
flusher
Pneumatic flush valve with three
discharge modes: 2-volume, start/stop, or continuous
front and top
Water connection left, right and back
Reinforced group I with insulation from condensation moisture
water connection DN 15
shaft
wallless
control panelless
drain-tank
for free standing installation, installation in front of a wall or wall - partition
mounting height of 1.00 m
powdered steel frame n
prepared for cladding, fixed connections
for single installation, rapid adjustment in height
Fastening material, checked -TUEV
2 bolt holders for toilet
pottery
spacing between bolts 180/230 mm
PP flushing arc DN 80, adjustment of installation depth
adapter DN 80/100, intake and flush headset
flusher
Pneumatic flush valve with three
discharge modes: 2-volume, start/stop, or continuous
front and top
Water connection left, right and back
Reinforced group I with insulation from condensation moisture
water connection DN 15
shaft
wallless
control panelless
Characteristics
Width, cm
50
Height, cm
118.5
Collection
Rapid SL
Country.
Germany
