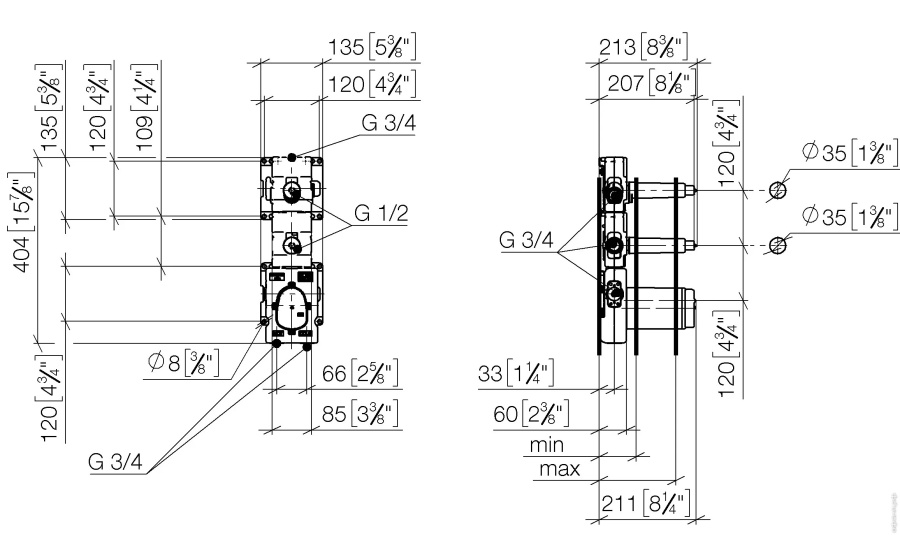

The interior of the shower mixer Dornbracht 35521970-90

Initial assembly kit

• 2x reverse flow safety
• case for hidden installation, DR-brass
• 2x attachment - internal thread 3/4" (cold/hot)
• 1x left/right to choose from - internal thread 1/2"
• 1x left/right/up to choose from - internal thread 1/2"
• 2x casing with the possibility of shortening
• 2x ceramic cartridge 1/2", with spindle with the possibility of shortening
• 3/4 thermostat cartridge with dirt filter
• styropore
• 3x protective cuff against water penetration
• 3x untreated protective cover
• soundproofing integrated
• 120 mm axle

Combined only with final installation kits 36,416 SSS-FF or
36 310 SSS-FF.
